D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
630-21W4240-7T5 | 10.9898 |  |
9933 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-21W4240-7T5 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 21 (17 + 4 Coax) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 21WA4 | 0.370" (9.40mm) | |
 |
628W2W2-222-4N2 | 10.7100 | |
8324 | 0.00000000 | EDAC Inc. | 628-WC | Tray | Active | -25°C ~ 85°C | Panel Mount | Shielded | 628W2W | Black | Solder Cup | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628W2W2-222-4N2 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 1 | Gold | Flash | 40A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | - | |
 |
627-M09-620-BT2 | 6.8192 | |
3091 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M09 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M09-620-BT2 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | - | ||
 |
627-037-010-053 | 2.6260 | |
8412 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-037-010-053 | EAR99 | 8536.69.4040 | 100 | ||||||||||||||||||||||||||
 |

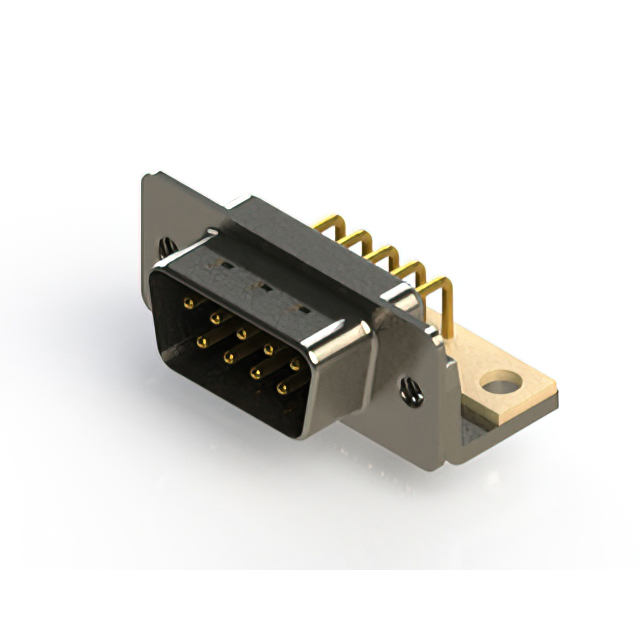

621-M09-260-BT4 | 3.7170 | |
3259 | 0.00000000 | EDAC Inc. | 621-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 621-M09 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-M09-260-BT4 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | 0.283" (7.20mm) | ||
|
627-17W5622-4N2 | 29.2929 | |
4428 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-17W | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-17W5622-4N2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (12 + 5 Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 17W5 | - | |
 |
634-044-263-031 | 5.2258 | |
2563 | 0.00000000 | EDAC Inc. | 634 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 634-044 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-044-263-031 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 44 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 3 (DB, B) High Density | 0.350" (8.89mm) | ||
 |
630-24W7240-2TB | 11.0817 | |
1906 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-24W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-24W7240-2TB | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 24 (17 + 7 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 24W7 | 0.370" (9.40mm) | |
 |
633-062-363-511 | 12.3040 | |
7941 | 0.00000000 | EDAC Inc. | 633 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 633-062 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-062-363-511 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 62 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 4 (DC, C) High Density | 0.350" (8.89mm) | ||
 |
629-21W1240-5N6 | 9.8899 | |
8467 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents | 629-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-21W1240-5N6 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 21 (20 + 1 Coax) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 21W1 | 0.370" (9.40mm) | |
 |
B57-150-561IE22 | - | |
5199 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-150-561IE22 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
629-13W3240-4N6 | 10.8343 | |
9507 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents | 629-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-13W3240-4N6 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (10 + 3 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | 0.370" (9.40mm) | |
 |
627-2W2-624-3N1 | 8.9456 | |
1415 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-2W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-2W2-624-3N1 | EAR99 | 8536.69.4040 | 200 | Plug, Male Pins | 1 | Gold | 30.0µin (0.76µm) | 30A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | - | |
 |
627-M37-623-GN5 | 38.7574 | |
1107 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-M37 | Green | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-M37-623-GN5 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 4 (DC, C) | - | |
 |
626-025-662-041 | 8.1596 | |
8148 | 0.00000000 | EDAC Inc. | 626 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 626-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-626-025-662-041 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.584" (14.84mm) | ||
 |
630-009-240-511 | 1.1363 | |
1888 | 0.00000000 | EDAC Inc. | 630 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Mounting Brackets, Shielded | 630-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-009-240-511 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.409" (10.40mm) | ||
|
628-037-010-251 | 2.0200 | |
6604 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 628-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-037-010-251 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | - | 3A per Contact | Brass | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 4 (DC, C) | - | |
 |
630-17W2240-7NB | 10.8343 | |
1980 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-17W2240-7NB | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 17 (15 + 2 Coax) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | |
 |
629-24W7640-7N2 | 38.6333 | |
9255 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 629-24W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-24W7640-7N2 | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 24 (17 + 7 Coax) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 24W7 | 0.370" (9.40mm) | |
 |
627-2W2-222-1T2 | 5.3666 | |
6991 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-2W2 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-2W2-222-1T2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | Flash | 10A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | - | |
 |
629-43W2640-4T2 | 30.4222 | |
1067 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 629-43W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-43W2640-4T2 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 43 (41 + 2 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | 0.370" (9.40mm) | |
 |
629-025-640-015 | 3.4416 | |
3647 | 0.00000000 | EDAC Inc. | 629 | Tray | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 629-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-025-640-015 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.409" (10.40mm) | ||
 |
634-026-363-512 | 6.9090 | |
6053 | 0.00000000 | EDAC Inc. | 634 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Mounting Brackets, Shielded | 634-026 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-026-363-512 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | 0.350" (8.89mm) | ||
 |
662-015-364-048 | 8.4082 | |
8936 | 0.00000000 | EDAC Inc. | 662 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 662-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-662-015-364-048 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2, 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | - | UL94 V-0 | Signal | 15, 15 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 2 (DA, A); 2 (DA, A) | 0.318" (8.08mm) | ||
 |
630-17W2240-1TB | 6.3672 | |
3200 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-17W2240-1TB | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | |
 |
629-17W2250-2NA | 9.1183 | |
7146 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents | 629-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-17W2250-2NA | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | |
 |
662-037-264-040 | 13.2300 | |
2339 | 0.00000000 | EDAC Inc. | 662 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 662-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-662-037-264-040 | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Sockets | 2, 2 | Gold | Flash | 3A per Contact | - | UL94 V-0 | Signal | 37, 37 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 4 (DC, C); 4 (DC, C) | 0.318" (8.08mm) | ||
 |
628-015-622-249 | 2.3871 | |
1505 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Free Hanging (In-Line) | Shielded | 628-015 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-015-622-249 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 2 (DA, A) | - | |
 |
628-8W8-624-1T2 | 29.9408 | |
6102 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-8W8 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-8W8-624-1T2 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 1 | Gold | 30.0µin (0.76µm) | 10A | Copper Alloy | UL94 V-0 | Signal and Power | 8 (Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | - | |
 |
B57-014-667I822 | - | |
2971 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-014-667I822 | EAR99 | 8536.69.4040 | 1 |
